Zapięcia GN 855
Forged steel, blackened.
Standard version- Type C2: for screwing.
Bearing flangeSheet steel, blackened.
Clamping bolt / NutSteel, blackened.
Counter plate / Bearing pinSteel, blackened.
Features and applications
C-Clamps GN 855 feature an especially robust, sturdy and compact design, allowing them to be used under severe and demanding conditions, e.g. higher temperatures, dust, mist, etc.
The C-Clamps are normally installed and fixed at the clamping point. The counter plate supplied loose has a ball socket and is designed for attaching to the counter piece to be clamped. In connection with the ball-type bolt, this configuration ensure the precise positioning of the latch clamp.
If the counter plate is not to remain at the counter piece to be clamped, the clamping bracket may alternatively also be used to hold GN 802 clamping bolts which have a pendulum-type bearing surface.

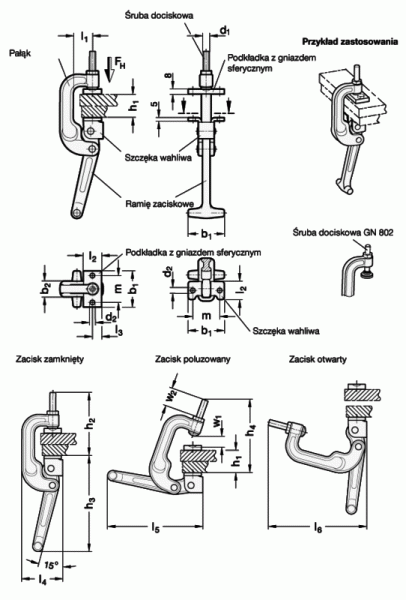

| Produkt | h%1%maks. | l1 | F%H% w N | b%1% | b2 | d%1% | d%2% | h2 | h3 | h4 | l%2% | l3 | l%4% | l%5% | l%6% | m | w%1% | w%2% | kolor |
 | 40 | 32 | 15000 | 60 | 26 | M 10 | 8.5 | 111 | 168 | 129 | 30 | 18 | 72 | 168 | 173 | 45 | 19 | 32 | pomarańczowy |
 | 75 | 32 | 15000 | 60 | 26 | M 10 | 8.5 | 146 | 168 | 164 | 30 | 18 | 72 | 168 | 207 | 45 | 19 | 32 | pomarańczowy |
