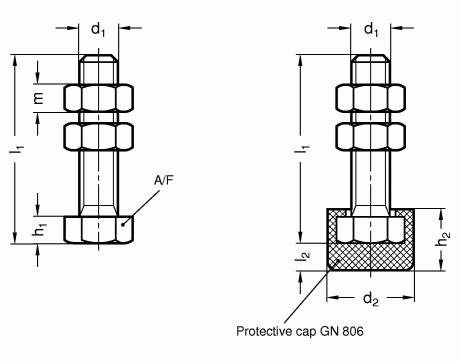

Śruby dociskowe GN 807
Śruba z łbem sześciokątnym wg normy DIN 933 ze stali cynkowanej na niebiesko, klasy 8.8 (wytrzymałość 800N/mm2).
- Wykonanie A: bez kapturka ochronnego.
- Wykonanie B: z kapturkiem ochronnym GN 806 (tylko dla d1 < = M12).
Stal cynkowana na niebiesko.
| Produkt | d%1% | l1 | d%2% | h%1% | h2 | l%2% | m | A/F |
 | M 4 | 23 | - | 3 | - | - | 3.2 | 7 |
 | M 5 | 38 | - | 3.5 | - | - | 4.7 | 8 |
 | M 6 | 29 | - | 4 | - | - | 5.2 | 10 |
 | M 6 | 49 | - | 4 | - | - | 5.2 | 10 |
 | M 8 | 36 | - | 5.5 | - | - | 6.8 | 13 |
 | M 8 | 56 | - | 5.5 | - | - | 6.8 | 13 |
 | M 8 | 96 | - | 5.5 | - | - | 6.8 | 13 |
 | M 10 | 43 | - | 6.5 | - | - | 8.4 | 16 |
 | M 10 | 77 | - | 6.5 | - | - | 8.4 | 16 |
 | M 10 | 127 | - | 6.5 | - | - | 8.4 | 16 |
 | M 12 | 53 | - | 7.5 | - | - | 10.8 | 18 |
 | M 12 | 88 | - | 7.5 | - | - | 10.8 | 18 |
 | M 12 | 128 | - | 7.5 | - | - | 10.8 | 18 |
 | M 14 | 54 | - | 9 | - | - | 12.8 | 21 |
 | M 4 | 23 | 11 | 3 | 6.5 | 2.5 | 3.2 | 7 |
 | M 5 | 38 | 12.5 | 3.5 | 8 | 2.5 | 4.7 | 8 |
 | M 6 | 29 | 15 | 4 | 10 | 4 | 5.2 | 10 |
 | M 6 | 49 | 15 | 4 | 10 | 4 | 5.2 | 10 |
 | M 8 | 36 | 19 | 5.5 | 13 | 5.5 | 6.8 | 13 |
 | M 8 | 56 | 19 | 5.5 | 13 | 5.5 | 6.8 | 13 |
 | M 8 | 96 | 19 | 5.5 | 13 | 5.5 | 6.8 | 13 |
 | M 10 | 43 | 24 | 6.5 | 16 | 7 | 8.4 | 16 |
 | M 10 | 77 | 24 | 6.5 | 16 | 7 | 8.4 | 16 |
 | M 10 | 127 | 24 | 6.5 | 16 | 7 | 8.4 | 16 |
 | M 12 | 53 | 26 | 7.5 | 19 | 8.5 | 10.8 | 18 |
 | M 12 | 88 | 26 | 7.5 | 19 | 8.5 | 10.8 | 18 |
 | M 12 | 128 | 26 | 7.5 | 19 | 8.5 | 10.8 | 18 |
